|Power Handling – Peak W||120|
|Power Handling – Continuous W||40|
|Frequency response Hz||80 ÷ 22k|
|Sensitivity dB SPL||92|
|Woofer size mm (in.)||100(4)|
|Tweeter size mm (in.)||24 (0.9)|
|Woofer Voice Coil Ø mm (in.)||25 (1)|
|Tweeter voice coil Ø mm (in.)||13 (0.5)|
|Woofer magnet||High density flux ferrite|
|Woofer cone||Semi-pressed paper + Mica|

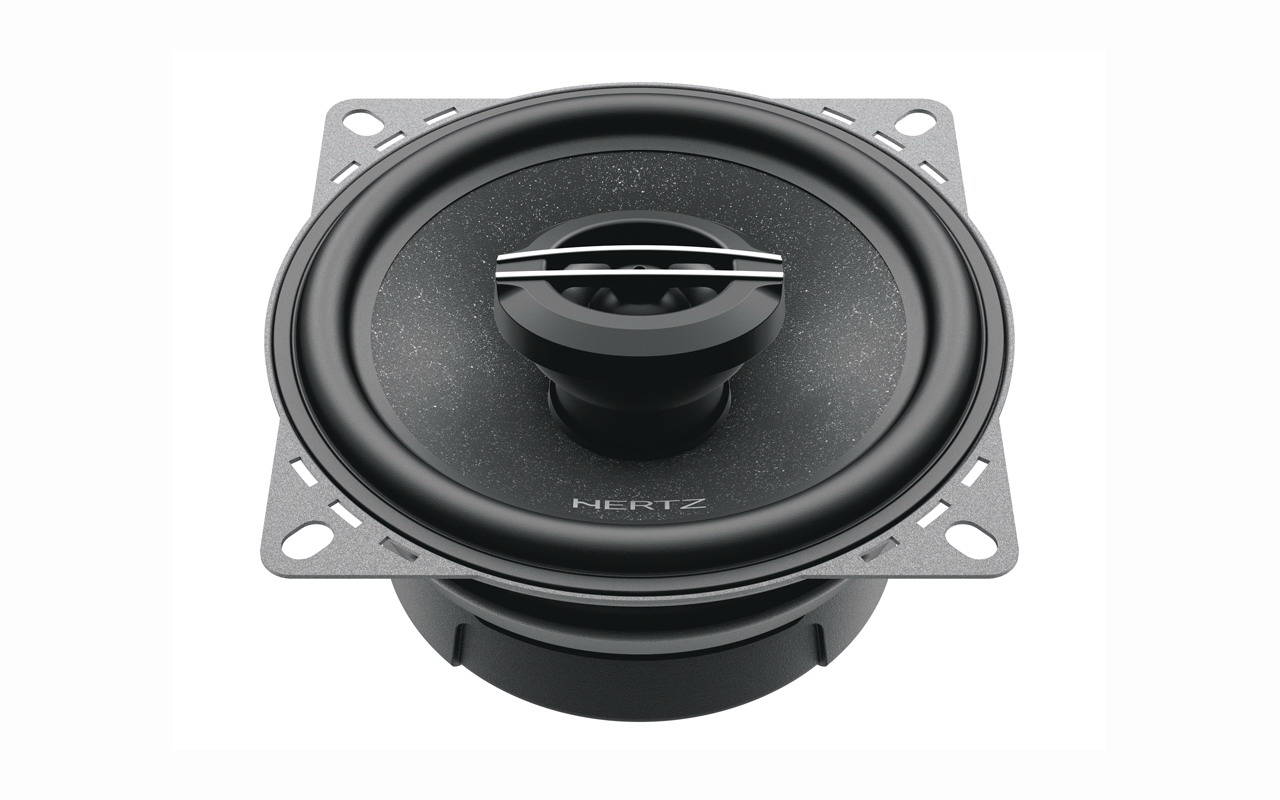

1. Soft Tetolon® fiber 24 mm (0.9 in.) dome tweeter cooled with ferrofluid, for extended and natural high frequencies.
2. RHFC ™ (Rotary High Frequency Contour) tweeter angled and directable to the listener for a perfect frequency response in any installation scenario.
3. Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations.
4. 25 mm (1 in.) woofer voice coil featuring an aluminum former to guarantee high excursion and power handling.
5. 100 mm (5 in.) semi-pressed paper cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.
6. High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
7. Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
8. Elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh, available as optional.
Component Two way coaxial
Woofer mm (in.) 100 (4)
Tweeter diaphragm mm (in.) 24 (0.9)
Voice Coil Ø
Woofer mm (in.) 25 (1)
Tweeter mm (in.) 13 (0.5)
Power Handling W peak 120
W continuos 40
Impedance Ω 4
Frequence Response Hz 80 ÷ 22k
Woofer Magnet size
D x d x h
70 x 32 x 10
(2.76 x 1.26 x 0.39)
Tweeter Magnet size
D x h
13 x 2
(0.51 x 0.08)
Weight of one speaker kg (lb.) 0,47 (1.04)
Woofer Magnet High density flux ferrite
Tweeter Magnet Neodymium
Cone Semi-pressed paper + Mica
Xmech mm (in.) 2,9 (0.11)
