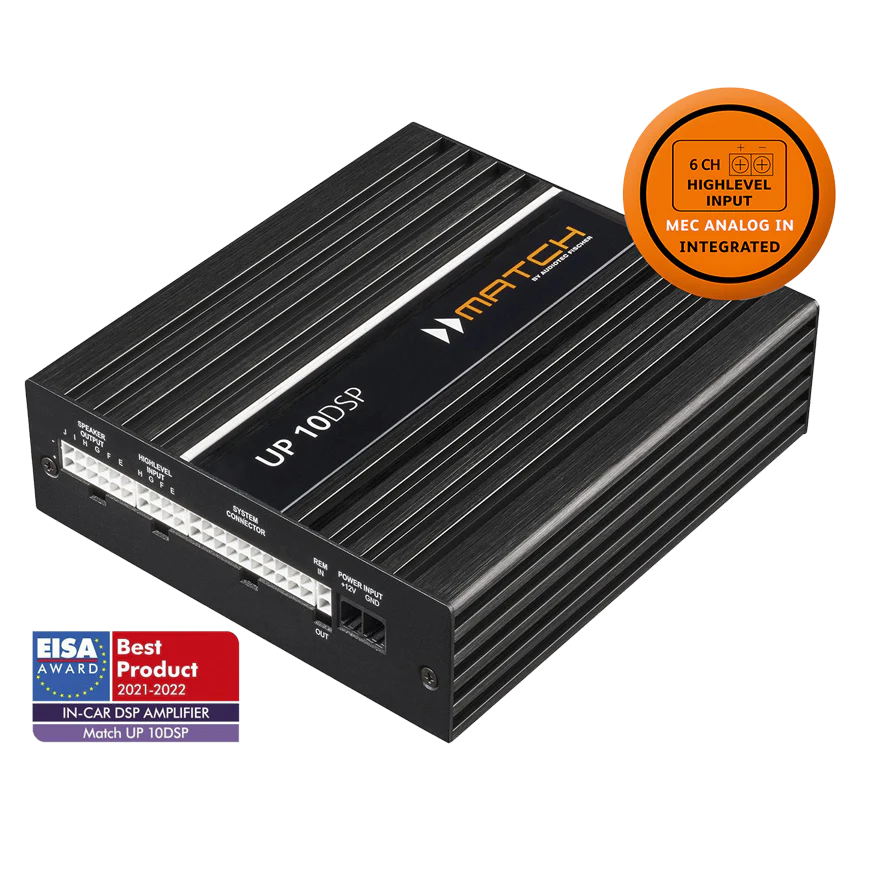

The new UP 10DSP is a real problem solver when it comes to upgrading premium sound systems in today’s vehicles. Even though more and more vehicles are equipped with complex multi-channel sound systems ex works, the sound quality does not always meet one’s expectations.
In many cases, a replacement is no longer possible, so that only an amplifier with a large number of highlevel inputs and sophisticated technology can be considered for upgrading the system. And here the new UP 10DSP offers the perfect solution.
For optimal adaptation to existing multi-channel sound systems, the UP 10DSP is equipped with not less than 8 highlevel inputs (two high power inputs with up to 32 Volts), an optical digital input, a MATCH extension card slot, 10 amplifier outputs and a total of 11 processed DSP channels.
In addition, intelligent technologies, such as the proprietary ADEP.3 circuit and 32 Bit ACO platform, ensure safe operation.
The adaptation to modern OE sound systems via an increasing number of inputs has a significant impact on the complexity of the signal routing inside the amplifier. Especially when several input signals are mixed together and then split again into multi-way systems, conventional routing concepts quickly reach their limits, both in terms of implementation and usability.
Audiotec Fischer’s new multi-stage “Virtual Channel Processing”, in conjunction with the recognized user-friendly DSP PC-Tool software makes it easy to realize even highly complex system configurations. Besides, it allows to freely assign our proprietary FX sound features such as “RealCenter” or “Augmented Bass Processing”. But the UP 10DSP, thanks to its enormous number of channels in combination with the optional MEC ANALOG IN module, is also a prime example for applications where 1 to 1 routing (IOR) makes sense.
Such a huge number of channels requires ultra-fast hardware – Audiotec Fischer’s proprietary 32 Bit ACO platform takes care of all control tasks and ensures the decisive speed increase, especially for data communication with our DSP PC-Tool software but also for the lightning-fast switching between up to ten sound setups. But ACO offers much more – fantastic sound effects such as Augmented Bass Processing or RealCenter are implemented as well as a channel-separated Input EQ including the Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios.
Despite its huge output power of 8 x 65 Watts at 4 Ohms and 2 x 90 / 160 Watts at 4 / 2 Ohms at the Sub Outs, as well as the enormous feature set, the UP 10DSP comes in an extremely compact design, so that installation is possible even in confined spaces.
TuneEQ is an extremely flexible and particularly easy-to-use function for automated frequency response correction. A single measurement per audio channel or channel pair with a suitable measurement microphone (e.g. our MTK1) is sufficient for TuneEQ to independently and precisely adjust the equalizers to the desired reference curve. TuneEQ uses the full function set of the parametric equalizer including center frequency, Q-factor and gain adjustment. And since the highly complex arithmetic operations required for this run in the background, you also save a lot of time when optimizing your sound with TuneEQ.
The “RealCenter” feature is an algorithm, developed by Audiotec Fischer, that emphasizes the music information which is present in both the left and right front channel to create an unique center signal. In contrast to common procedures, in which only the channels are summed up, the intensity of the center signal is also dynamically controlled by the stereophonic informational content of the left and right channel.
Sounds complicated but this effect is astonishing: That means if solely the left or right channel delivers an audio signal, the center channel will not reproduce a signal. In the case of common algorithms, the volume level of the center channel is only reduced by 6 dB (= half volume level). Audiotec Fischer’s “RealCenter” allows a unique, broadened sound staging for both driver and co-driver at the same time! Therefore, the disadvantages of a conventional center channel, such as an intrusive, small sound stage, are things of the past.
Audiotec Fischer’s proprietary “Augmented Bass Processing”, consisting of the two revolutionary sound features “Dynamic Bass Enhancement” and “SubXpander”, has been especially developed to dramatically improve the bass reproduction of subwoofers.
The “Dynamic Bass Enhancement” ingeniously combines maximum deep bass and highest sound pressure – regardless of the music style or the tone controls in the head unit. Depending on the input signal, the “Dynamic Bass Enhancement” gains the lower frequency range and varies the cut-off frequency of the subsonic filter. The result is a significantly more powerful and deeper bass response at low and medium volume levels without the risk of overloading the subwoofer neither mechanically nor electrically at high volume levels. It is simply fascinating which bass performance is suddenly possible.
If you want an even lower and “darker” bass reproduction, the “SubXpander” can be additionally activated. Therefore, subharmonic tones are added to the fundamental tones in the frequency range between 50 and 100 Hz.
