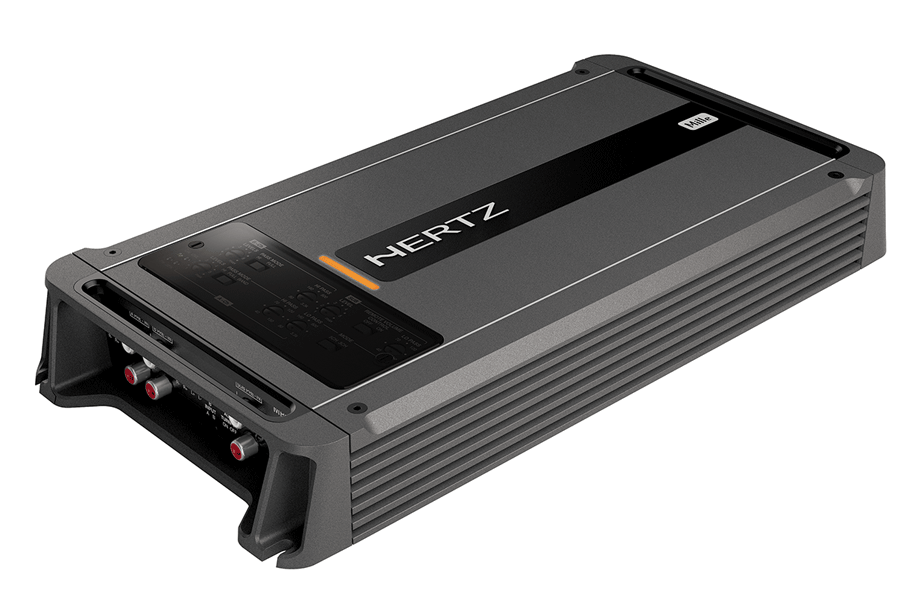

D-CLASS FIVE CHANNEL AMPLIFIER
Available In-store Only
Out of stock
|Channel mode||5 – 3|
|Output Power (RMS)|
@ 14.4 VDC
|5 Ch 70 W x 4 + 380 W x 1 (4Ω)|
5 Ch 100 W x 4 + 550 W x 1 (2Ω)
3 Ch 200 W x 2 (4Ω) + 380 W x 1 (4Ω)
3 Ch 200 W x 2 (4Ω) + 550 W x 1 (2Ω)
A Ch: 40 ÷ 150 Hz @ 12 dB/Oct. – B Ch: 80 ÷ 3.3k Hz @ 12 dB/Oct.
C Ch: 40 ÷ 500 Hz @ 24 dB/Oct.
A Ch: 40 ÷ 150 Hz @ 12 dB/Oct. – 80 ÷ 3.3k Hz (LO) @ 12 dB/Oct.
|Distortion – THD|
(100Hz @ 4Ω)
(A weighted @ 1V)
|100 dB A & B Ch – 106 dB C Ch|
(100Hz @ 4Ω)
|50 A & B Ch – 90 C Ch|
|Size W x D x H|
|170 x 349 x 46.70 – (6.69′ x 13.74′ x 1.84′)|
Power supply voltage: 11÷15 VDC
Idling current: 3 A
Idling current when off: 0.04 mA
Consumption @ 2Ω, 14.4 VDC (Max Musical Power): 50 A
Remote In: 4 ÷ 15 VDC – 1 mA
ARTTM: Automatic Remote Turn-On/Off with Speaker-In
Fuse: 2 x 40 A
INPUTS / FILTERS
Inputs: Pre IN / Speaker IN
A Ch filters: Full / Hi-Pass / Band-Pass 40 ÷ 150 Hz (HI) 80 ÷ 3.3k Hz (LO) @
B Ch filters: Full / Hi-Pass 80 ÷ 3.3k Hz @ 12 dB/Oct.
C Ch filters: Lo-Pass 50 ÷ 500 Hz @ 24 dB/Oct.
Remote SUB volume: (-50 ÷ 6) dB
Distorsion – THD (100 Hz @ 4Ω): 0.08 %
Bandwidth A & B Ch (-3 dB): 5 ÷ 50k Hz
Bandwidth C Ch (-3 dB): 5 ÷ 500 Hz
S/N Ratio A & B Ch (A weighted @ 1 V): 100 dB
S/N Ratio C Ch (A weighted @ 1 V): 106 dB
Damping factor A & B Ch (100 Hz @ 4Ω): 50
Damping factor C Ch (100 Hz @ 4Ω): 90
Pre-In sensitivity: 0.2 ÷ 5 V RMS
Pre-In impedance: 15 kΩ
Speaker-In sensitivity: 0.8 ÷ 20 V RMS
Speaker-In impedance: 470 Ω
4 x 2Ω + 1 x 2Ω
2 x 4Ω + 1 x 2Ω
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
70 W x 4 + 380 W x 1 (4Ω)
100 W x 4 + 550 W x 1 (2Ω)
200 W x 2 (4Ω) + 380 W x 1 (4Ω)
200 W x 2 (4Ω) + 550 W x 1 (2Ω)
CEA 2006-A RATINGS
RMS Power (4 Ω, ≤ 1 %
THD+N, 14.4 V):
60 W x 4 Ch
+ 310 W x 1 Ch
S/N Ratio (ref. 1 W output): 60 W Channel: 80 dBA
310 W Channel: 84 dBA
SIZE / WEIGHT
Max size (mm/inches): 170 x 349 x 46.70 / 6.69” x 13.74” x 1.84”
Weight (kg/lb): 3.09 / 6.81
