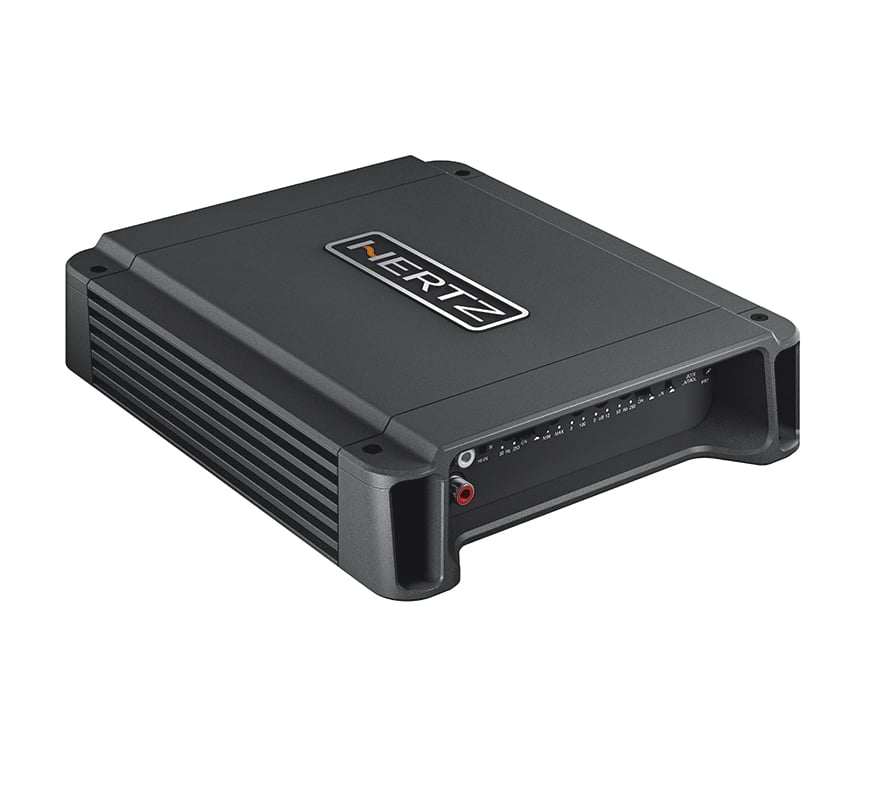

D-CLASS MONO AMPLIFIER
Available In-store Only
Out of stock
|Output Power (RMS)|
@ 14.4 VDC
|1 Ch: 380 W x 1 (4 Ω)|
1 Ch: 700 W x 1 (2 Ω)
50 ÷ 250 Hz @ 24 dB/Oct.
25 Hz @ 24 dB/Oct.
|Distortion – THD|
(100Hz @ 4Ω)
(A weighted @ 1V)
(100Hz @ 4Ω)
|Size W x D x H|
|215 x 190 x 50 (8.46 x 7.48 x 1.97)|
Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 25 A
Idling current (power ON/OFF): 1 A / 0.04 mA
Consumption @ 2 Ω, 14.4 VDC
(Max Musical Power): 25 A
Remote In: 7 ÷ 15 VDC – 1 mA
ART: Automatic Remote Turn-On/Off with Speaker-In
INPUTS: PRE IN / SPEAKER IN
Pre out Hi-Pass: 50 ÷ 250 Hz @ 12 dB/Oct.
Filters FULL: Yes
Lo-Pass: 50 ÷ 250 Hz @ 24 dB/Oct.
SUBSONIC (on/off): 25 Hz @ 24 dB/Oct.
BOOST 50 Hz (adjust): (0 ÷ 12) dB
PHASE (adjust): (0 ÷ 180) deg
Remote Volume Control (adjust): (-50 ÷ 6) dB
Max size (mm / in.): 215 x 190 x 50 / 8.46 x 7.48 x 1.97
Weight (kg / lb.): 1,94 / 4.27
Speaker Output Pre Output
Distorsion – THD (100 Hz @ 4 Ω): 0.2 %
Bandwidth: 10 ÷ 22k Hz
S/N Ratio (A weighted @ 1 V): 100 dB
Damping factor (100 Hz @ 4 Ω): 80
Pre-In sensitivity: 0.2 ÷ 5 VRMS
Speaker-In sensitivity: 0.8 ÷ 20 VRMS
Load impedance (MIN): 2 Ω
Output Power (RMS) @ 14.4 VDC, THD 1%:
1 Ch: 320 W x 1 (4 Ω)
1 Ch: 550 W x 1 (2 Ω)
Output Power (RMS) @ 14.4 VDC, THD 10%:
1 Ch: 380 W x 1 (4 Ω)
1 Ch: 700 W x 1 (2 Ω)
CEA 2006-A Ratings:
(4 Ω, ≤ 1 %THD + N, 14.4 V): 300 W x 1 Ch
S/N Ratio (ref. 1 W output): 80 dBA
